A Low Voltage Energy Storage System (ESS) battery is a safe, modular, and scalable energy storage solution designed for residential and small commercial applications.

7 products 2 visuals
Low Voltage ESS visual 2

Inside this category

Choose your system.

LVTS-128100-E Residential Photovoltaic Energy Storage Lithium-Ion BatteryAVAILABLE

LVTS-128100-E Residential Photovoltaic Energy Storage Lithium-Ion Battery

Performance::: Nominal Ratings -12.8 V,100Ah,1.28kWh 12.8 V,200Ah,2.56kWh 12.8 V,280Ah,3.58kWh,, Bulk Charge Voltage -14V, Float Charge Voltage -13.8V, Low Voltage -12.8V, Cutoff Voltage- 11.6V, Charge Current -50A 100 A 150A,, Discharge Current -100A 200 A 200 A,, Short Circuit Current ≈1000 A ≈2000A ≈2000 A Dimension (WxDxH mm) -260X168X210 MM 520X168X210 MM 387X206X269 MM,, Weight (Kg) -9.85kg 26 kg 27kg Working Temperature -20℃~60℃,, :--In summary, the LVTS-128100-E stands out as a cost-effective, efficient, and compact energy storage solution that meets the demands of modern energy systems. Its 1.28kWh capacity, combined with a well-calibrated 12.8V operating voltage, makes it particularly well-suited for small-scale photovoltaic systems and backup power applications. Whether used to stabilize a home’s energy supply during outages or to store solar energy for later use, this battery provides a dependable and smart energy management solution. With its balance of performance, reliability, and affordability, the LVTS-128100-E is a strategic choice for anyone looking to invest in sustainable and resilient energy infrastructure.

Open product
LVTS-256280 Residential Photovoltaic Energy Storage Lithium-Ion BatteryAVAILABLE

LVTS-256280 Residential Photovoltaic Energy Storage Lithium-Ion Battery

Performance::: Nominal Voltage -25.6Vdc, Nominal Capacity -200 Ah 280 Ah, Battery Energy -5120 Wh 7168 Wh, Charge Current -100 A 140A, Discharge Current -160A 200A, Charge Voltage- 28.4V, Discharge Voltage Range -22.8V~28.4V, Dimension(WxDxH mm) -580x430x230 mm, Weight (Kg) -50 kg 62.5 kg, Installation -Wall Mount, Display -LCD Display, :-------In conclusion, the LVTS256280 delivers an exceptional blend of ease of installation, smart connectivity, and robust performance—all tailored for residential PV applications. Its flexible mounting options, advanced safety features, and seamless integration with solar energy systems make it a leading choice for homeowners dedicated to harnessing renewable energy for a sustainable future.

Open product
LVTS-256100 Residential Photovoltaic Energy Storage Lithium-Ion BatteryAVAILABLE

LVTS-256100 Residential Photovoltaic Energy Storage Lithium-Ion Battery

Performance::: Nominal Voltage -25.6 Vdc, Nominal Capacity -100 Ah, Battery Energy- 25.6V,100Ah,2.56 kWh, Charge Current- 50A, Charge Power -1280 W, Discharge Current- 100 A, Discharge Power -2560W Short Circuit Current ≈2000 A, Dimension- (WxDxH mm) 330x135x420 mm, Weight -(Kg) 26 kg, nstallation -Wall Mount, Display -LCD Display, Working Temperature -20C~60℃, :--------In summary, the LVTS‑256100 stands as a prime example of modern energy storage technology. Its easy installation, coupled with an intelligent BMS and a design optimized for residential PV systems, makes it an ideal solution for homeowners seeking to harness the full potential of solar energy. By combining safety, scalability, and user‑friendly design, the LVTS‑256100 offers a reliable and cost‑effective energy storage solution for today’s sustainable living needs.

Open product

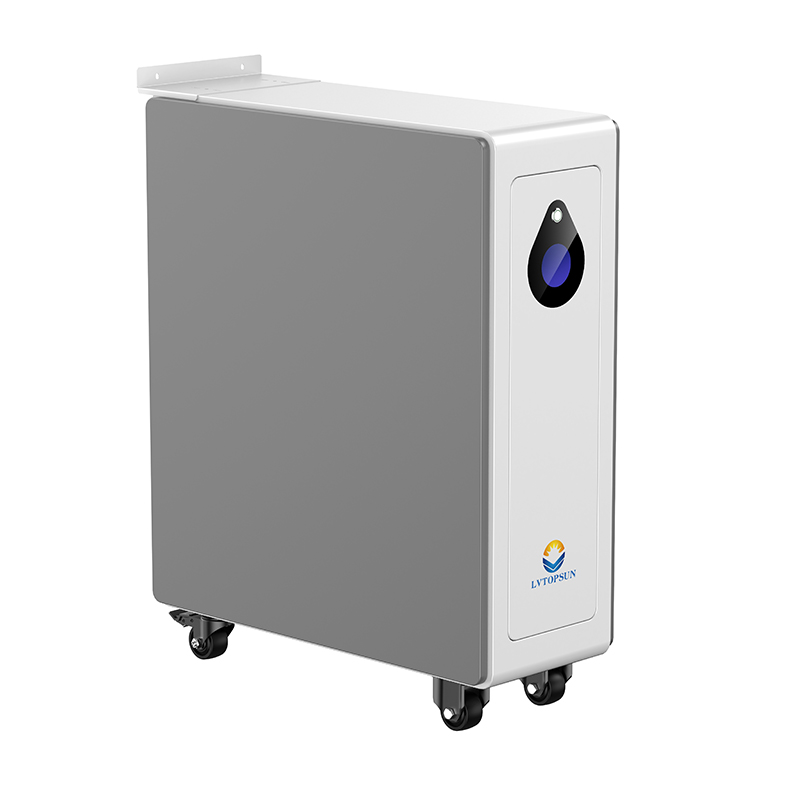

LVTS-512560 Residential Photovoltaic Energy Storage Lithium-Ion BatteryAVAILABLE

LVTS-512560 Residential Photovoltaic Energy Storage Lithium-Ion Battery

Performance::: Nominal Voltage -51.2 Vdc, Nominal Capacity -560 Ah, Battery Energy -28.6 kWh, Charge Current -150A, Charge Power- 7.68 kW, Discharge Current -200A, Discharge Power -10.24 kW, :-----------In summary, the LVTS-512560 is more than just a high-capacity battery—it is a versatile, reliable, and cost-effective energy storage solution that is ideally suited for photovoltaic systems. By ensuring that surplus solar energy is efficiently stored and available when needed, it helps overcome one of the primary challenges of solar power: intermittency. Whether used in residential rooftop systems, commercial solar installations, or large-scale renewable energy projects, the LVTS-512560 delivers the performance, durability, and economic advantages that modern PV systems demand. This combination of high capacity, advanced technology, and exceptional value makes the LVTS-512560 a cornerstone for sustainable and resilient energy solutions in today’s rapidly evolving energy landscape.

Open product
LVTS-512314-G3 Residential Photovoltaic Energy Storage Lithium-Ion BatteryAVAILABLE

LVTS-512314-G3 Residential Photovoltaic Energy Storage Lithium-Ion Battery

Performance NominalVoltage - 51.2 Vdc Nominal Capacity- 314 Ah Nominal Energy- 16076.8 Wh Charge Voltage -56.16V Maximum Charge Current -150A Maximum Discharge Current -200A Connunication Mode CAN/RS485 Discharge Voltage Range -45.6 V~56.16V Dimension (WXDXH mm) -866x450x230 mm Weight (Kg) 119 kg Working Temperature- Charge 0℃~45℃ Discharge-20℃~45℃ Storage Temperature Short Term(within 1month)-10℃~45℃ LongTerm(within 1 year)0℃~35℃ Display LED indicator+LCD Display Communication RS232、RS485、CAN In summary, the LVTS‑512314‑G3 is a state‑of‑the‑art energy storage system that combines massive capacity with an agile, floor‑mounted design. Its wheeled installation not only facilitates efficient deployment and maintenance but also ensures that the system can adapt to a wide range of spatial and operational challenges. With advanced safety protocols, seamless connectivity, and a user‑friendly interface, the LVTS‑512314‑G3 sets a new benchmark in reliable, high‑capacity power storage solutions, catering to the evolving demands of modern energy infrastructures

Open product
