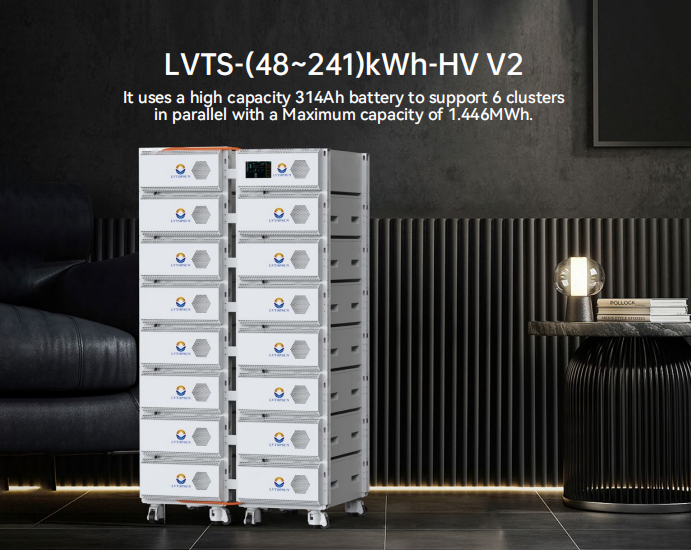

LVTOPSUN LVTS-(48~241)kWh-HV V2 | High Voltage LiFePO₄ Battery Energy Storage System

Discover the LVTOPSUN LVTS-(48~241)kWh-HV V2 high-voltage battery system featuring modular 314Ah LiFePO₄ batteries, up to 1.446MWh system capacity, built-in aerosol fire protection, active cell balancing, and WiFi APP monitoring. Supported by LVTOPSUN's global service network. :::::::::::::::::::::::::: Technical Specifications Battery Specifications Parameter Specification Model LVTS-(48~241)kWh-HV V2 Battery Type LiFePO₄ (LFP) Battery Module name LVTS-512314-HV V2 Nominal Battery Energy 16.076kWh Usable Battery Energy 15.272kWh Nominal Capacity 314Ah Nominal Voltage 51.2V Module Number per Cluster 3–15 Pcs Operating Voltage 134.4V–864V System Energy Range 48.228kWh–1.446MWh Charge & Discharge Parameter Specification Recommended Charge & Discharge Rate 0.5C (157A) Maximum Charge Rate 0.6C (180A) Maximum Discharge Rate 0.7C (200A) Peak Discharge Current (25°C) 314A Recommended Charge & Discharge Power 8.038kW Maximum Charge & Discharge Power 10.239kW Depth of Discharge 90% DOD General Specifications Parameter Specification Cooling Method Forced Wind Cooling Safety Protection Built-in Aerosol Fire Extinguisher Communication CAN / RS485 User Interface WiFi + APP Protection Rating IP20 Cycle Life ≥8000 Cycles Charging Temperature 0°C–55°C Discharging Temperature -20°C–55°C Warranty 5 Years Mechanical Specifications Parameter Specification Single Cluster Dimension 590 × 865 × (400 + 270 × n) mm (with bracket & cover plate) Battery Module Weight 53.5 + 140 × n kg Expansion Module LVTSG503-1500V-250A Expansion Module Voltage 130–1500V Maximum Continuous Current 250A Expansion Module Weight 35kg Expansion Module Protection IP20 Compatibility & Certifications Parameter Specification Compatible Inverters Solis, Deye, Megarevo, ATESS, Growatt, etc. Certifications UN38.3, CE
